NTN 742017/GNP4

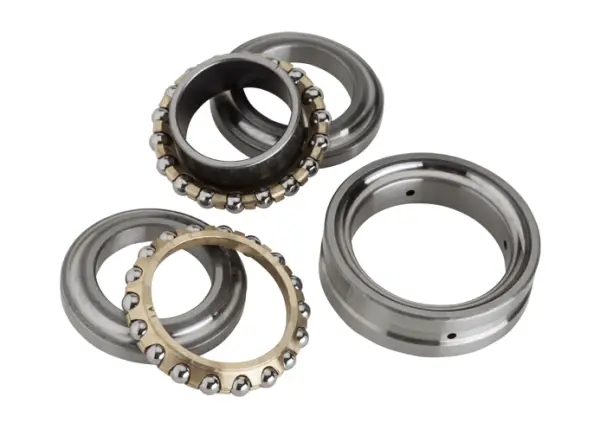

Double Direction Angular Contact Thrust Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
5300 RPM
Limiting Speed - Grease
4000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 4
Configuration
Two
Static Load Rating
118000 N
Dynamic Load Rating
108000 N
Enclosure
Open
Weight
1.850 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
85.000 mm
D
130.000 mm
C
27.000 mm
T1
45.000 mm
J
108.000 mm
Ew
118.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
45 º
da min
101.000 mm
Da max
101.000 mm
ras max
1.000 mm
r1as max
0.600 mm
