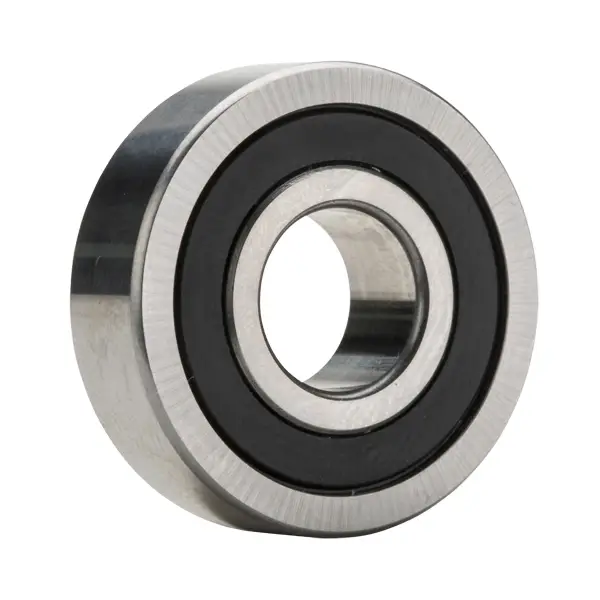

NTN 7900ADLLB
Sealed Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Grease
79700 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Static Load Rating
1010 N
Dynamic Load Rating
2880 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

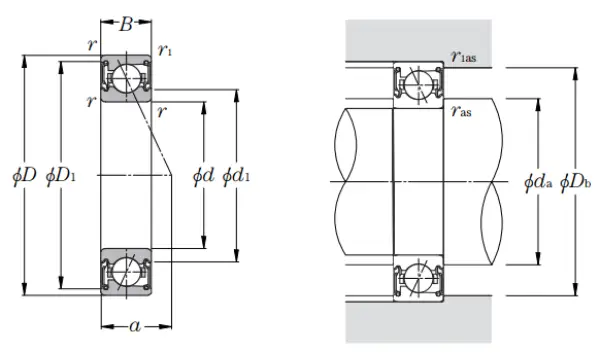

Dimensional Specifications
d
10.000 mm
D
22.000 mm
B
6.000 mm
d1
12.900 mm
da min
12.500 mm
D1
19.700 mm
Db
20.800 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
25 º
a
6.800 mm
Da max
19.700 mm
Double Row Width
12.000 mm
Triple Row Width
18.000 mm
Quadruple Row Width
24.000 mm
