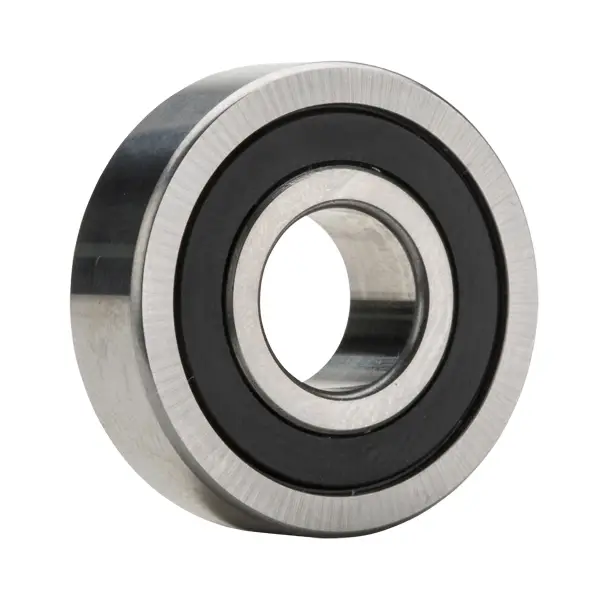

NTN 7902CDLLB
Sealed Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Grease
56300 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Static Load Rating
2860 N
Dynamic Load Rating
5050 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

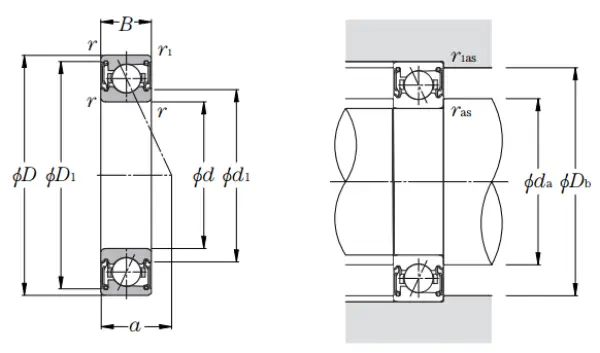

Dimensional Specifications
d
15.000 mm
D
28.000 mm
B
7.000 mm
d1
18.500 mm
da min
17.500 mm
D1
26.000 mm
Db
26.800 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
15 º
a
6.400 mm
Da max
26.000 mm
Double Row Width
14.000 mm
Triple Row Width
21.000 mm
Quadruple Row Width
28.000 mm
