NTN 7904ADLLB
Sealed Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
44700 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Static Load Rating
3000 N
Dynamic Load Rating
6950 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

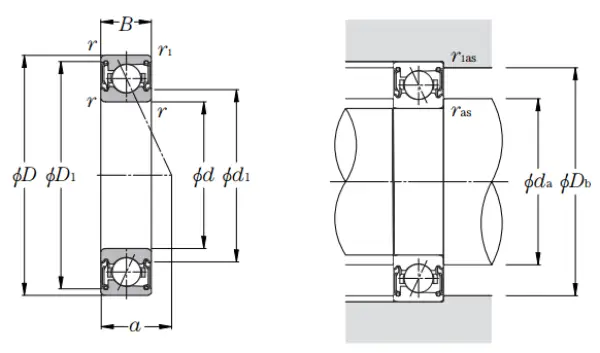

Dimensional Specifications
d
20.000 mm
D
37.000 mm
B
9.000 mm
d1
23.900 mm
da min
22.500 mm
D1
33.900 mm
Db
35.800 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
25 º
a
11.200 mm
Da max
34.500 mm
Double Row Width
18.000 mm
Triple Row Width
27.000 mm
Quadruple Row Width
36.000 mm
