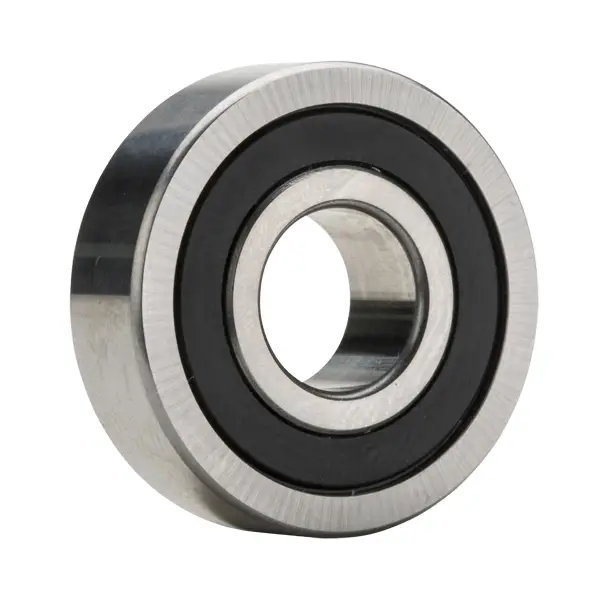

NTN 7908ADLLB
Sealed Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
25000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Static Load Rating
9050 N
Dynamic Load Rating
16700 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

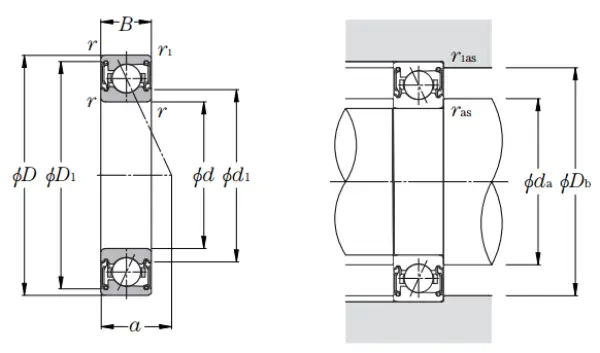

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
d1
45.300 mm
da min
44.500 mm
D1
58.800 mm
Db
59.500 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
25 º
a
18.000 mm
Da max
58.800 mm
Double Row Width
24.000 mm
Triple Row Width
36.000 mm
Quadruple Row Width
48.000 mm
