NTN 81100

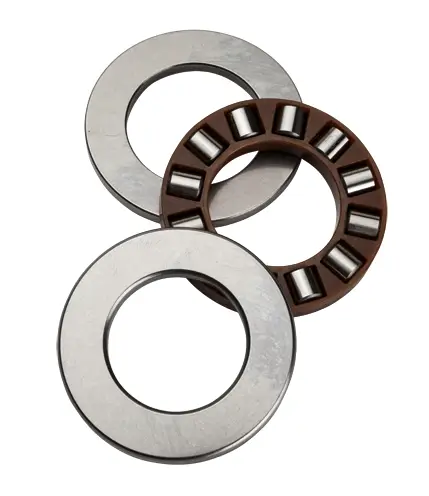

Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
3400 RPM
Precision
ISO Class 0
Weight
0.004 kg
Dynamic Load Rating
10800 N
Static Load Rating
21500 N
Operating Temperature Range
-40 to 120 ºC

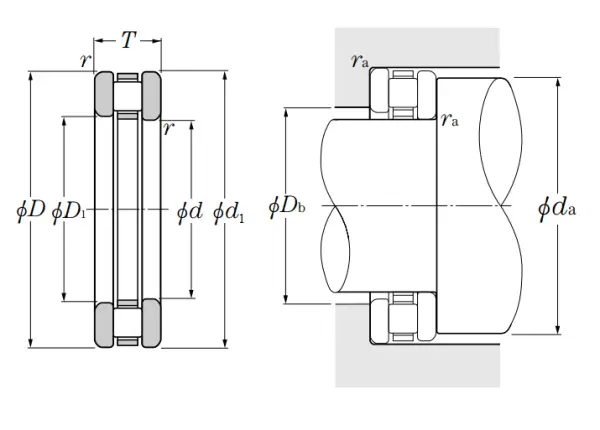

Dimensional Specifications
d
10.000 mm
d1 (-0.2/-0.5)
24.000 mm
D
24.000 mm
D1
10.000 mm
T
9.000 mm
r
0.300 mm
da min
12.000 mm
Db max
26.000 mm
ras max
3.500 mm
