NTN 81104
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
8500 RPM
Limiting Speed - Grease
2100 RPM
Precision
ISO Class 0
Weight
0.012 kg
Dynamic Load Rating
20200 N
Static Load Rating
46500 N
Operating Temperature Range
-40 to 120 ºC

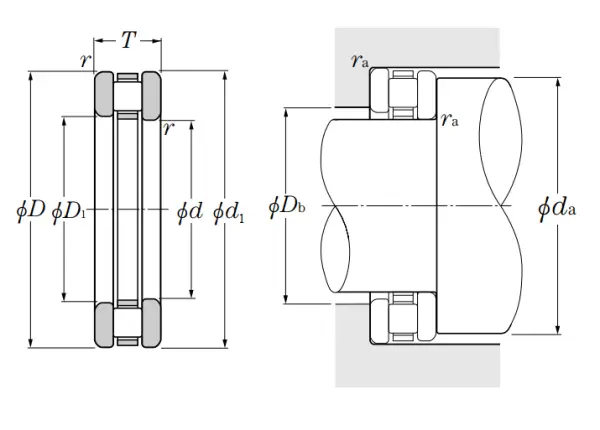

Dimensional Specifications
d
20.000 mm
d1 (-0.2/-0.5)
35.000 mm
D
35.000 mm
D1
21.000 mm
T
10.000 mm
r
0.300 mm
da min
25.000 mm
Db max
42.000 mm
ras max
5.000 mm
