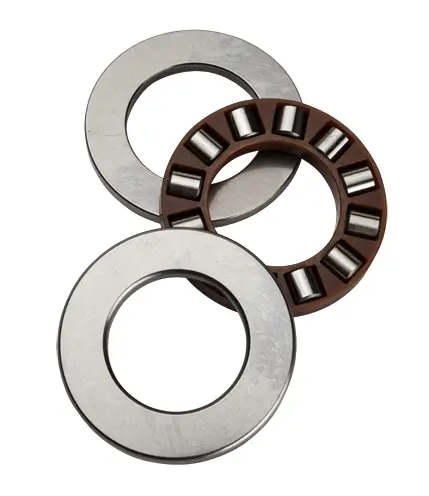

NTN 81105
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
7000 RPM
Limiting Speed - Grease
1800 RPM
Precision
ISO Class 0
Weight
0.018 kg
Dynamic Load Rating
27300 N
Static Load Rating
68000 N
Operating Temperature Range
-40 to 120 ºC

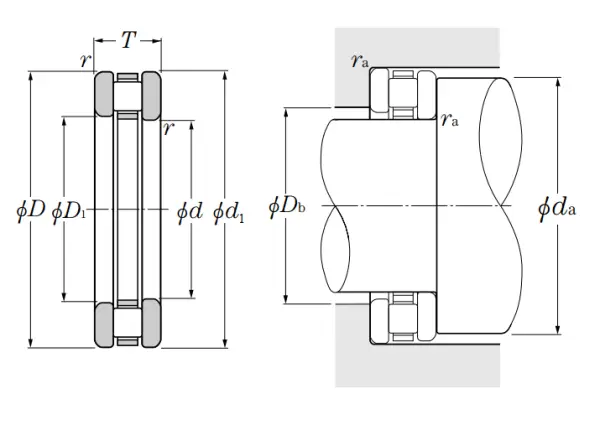

Dimensional Specifications
d
25.000 mm
d1 (-0.2/-0.5)
42.000 mm
D
42.000 mm
D1
26.000 mm
T
11.000 mm
r
0.600 mm
da min
30.000 mm
Db max
47.000 mm
ras max
5.000 mm
