NTN 81111J

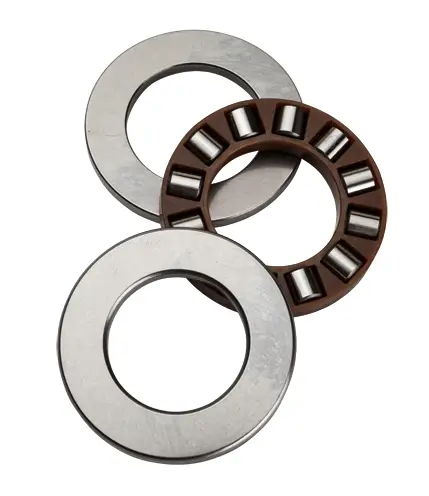

Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Punched Steel
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
900 RPM
Precision
ISO Class 0
Weight
0.060 kg
Dynamic Load Rating
62500 N
Static Load Rating
215000 N
Operating Temperature Range
-40 to 120 ºC

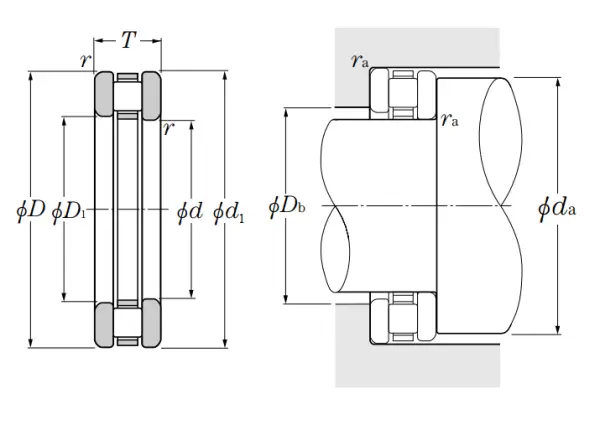

Dimensional Specifications
d
55.000 mm
d1 (-0.2/-0.5)
78.000 mm
D
78.000 mm
D1
57.000 mm
T
16.000 mm
r
0.600 mm
da min
55.000 mm
Db max
90.000 mm
ras max
11.000 mm
