NTN 89306
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
1300 RPM
Precision
ISO Class 0
Weight
0.046 kg
Dynamic Load Rating
54000 N
Static Load Rating
166000 N
Operating Temperature Range
-40 to 120 ºC

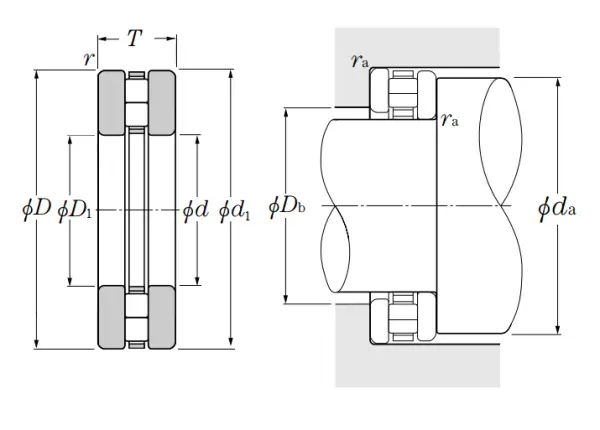

Dimensional Specifications
d
30.000 mm
d1 (-0.2/-0.5)
60.000 mm
D
60.000 mm
D1
32.000 mm
T
18.000 mm
r
1.000 mm
da min
35.000 mm
Db max
52.000 mm
ras max
5.000 mm
