NTN 89311
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
2900 RPM
Limiting Speed - Grease
730 RPM
Precision
ISO Class 0
Weight
0.240 kg
Dynamic Load Rating
158000 N
Static Load Rating
570000 N
Operating Temperature Range
-40 to 120 ºC

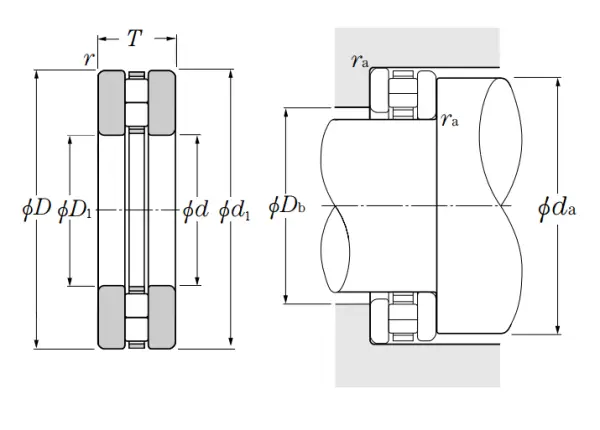

Dimensional Specifications
d
55.000 mm
d1 (-0.2/-0.5)
105.000 mm
D
105.000 mm
D1
57.000 mm
T
30.000 mm
r
1.100 mm
da min
55.000 mm
Db max
120.000 mm
ras max
8.000 mm
