NTN 89313
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
2600 RPM
Limiting Speed - Grease
650 RPM
Precision
ISO Class 0
Weight
0.260 kg
Dynamic Load Rating
167000 N
Static Load Rating
635000 N
Operating Temperature Range
-40 to 120 ºC

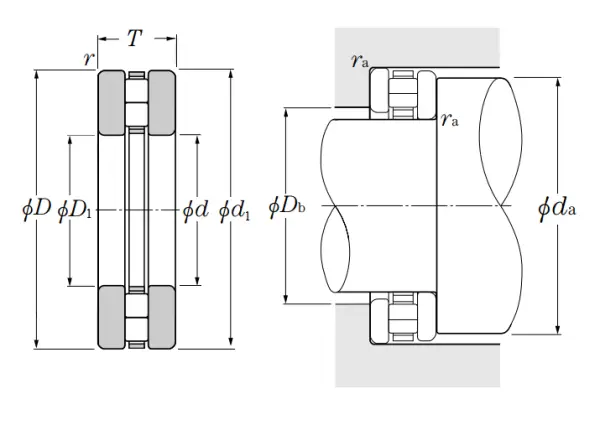

Dimensional Specifications
d
65.000 mm
d1 (-0.2/-0.5)
115.000 mm
D
115.000 mm
D1
67.000 mm
T
30.000 mm
r
1.100 mm
da min
65.000 mm
Db max
140.000 mm
ras max
10.000 mm
