NTN 89317
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
500 RPM
Precision
ISO Class 0
Weight
0.590 kg
Dynamic Load Rating
281000 N
Static Load Rating
1100000 N
Operating Temperature Range
-40 to 120 ºC

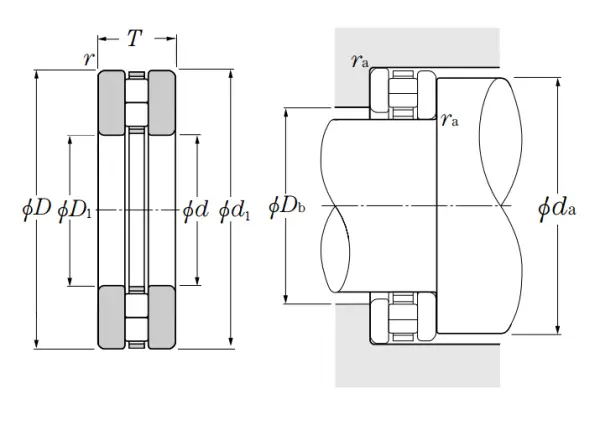

Dimensional Specifications
d
85.000 mm
d1 (-0.2/-0.5)
150.000 mm
D
150.000 mm
D1
88.000 mm
T
39.000 mm
r
1.500 mm
da min
85.000 mm
Db max
180.000 mm
ras max
13.000 mm
