NTN 89318
Thrust Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
1900 RPM
Limiting Speed - Grease
480 RPM
Precision
ISO Class 0
Weight
0.620 kg
Dynamic Load Rating
289000 N
Static Load Rating
1160000 N
Operating Temperature Range
-40 to 120 ºC

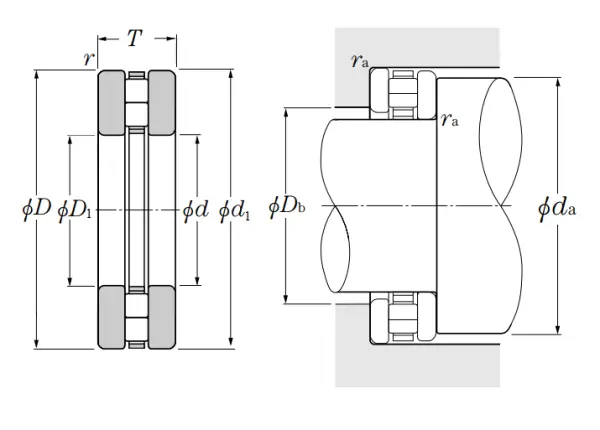

Dimensional Specifications
d
90.000 mm
d1 (-0.2/-0.5)
155.000 mm
D
155.000 mm
D1
93.000 mm
T
39.000 mm
r
1.500 mm
da min
90.000 mm
Db max
190.000 mm
ras max
13.000 mm
