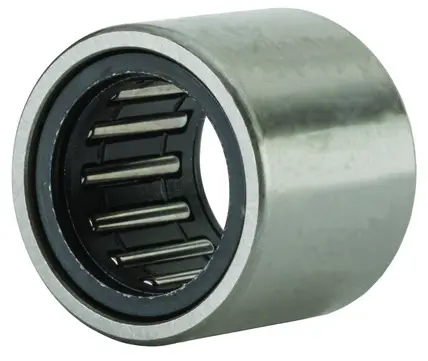

NTN 8E-NK32X52X15-3
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
21600 N
Dynamic Load Rating
22700 N
Weight
0.112 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
32.000 mm
Fw Tolerance
0.041/0.025 mm
D
52.000 mm
C
15.000 mm
r
1.000 mm
