NTN ARA82103T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
2500 RPM
Precision
ISO Class 0
Weight
0.061 kg
Dynamic Load Rating
12700 N
Static Load Rating
29000 N
Operating Temperature Range
-40 to 120 ºC

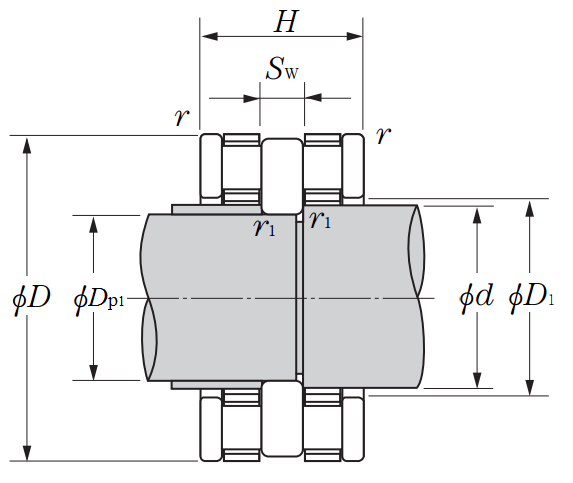

Dimensional Specifications
d
17.000 mm
Dp1 (-0.1/-0.2)
12.000 mm
D1 (0.5/0.2)
18.000 mm
D
30.000 mm
Sw
5.500 mm
H
18.000 mm
r
0.300 mm
r1
0.300 mm
