NTN ARA82108T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
4700 RPM
Limiting Speed - Grease
1200 RPM
Precision
ISO Class 0
Weight
0.307 kg
Dynamic Load Rating
43000 N
Static Load Rating
121000 N
Operating Temperature Range
-40 to 120 ºC

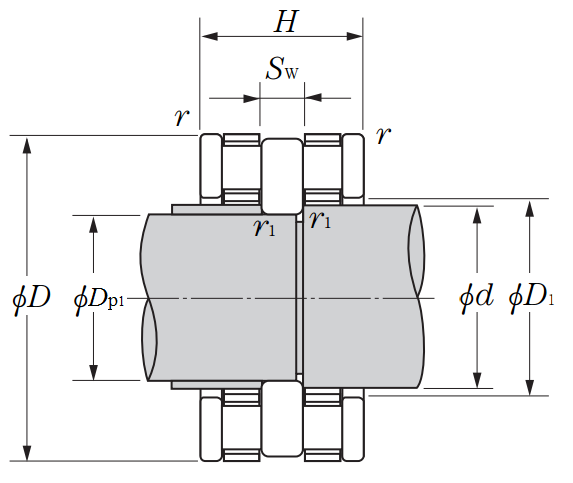

Dimensional Specifications
d
40.000 mm
Dp1 (-0.1/-0.2)
30.000 mm
D1 (0.5/0.2)
42.000 mm
D
60.000 mm
Sw
8.000 mm
H
27.000 mm
r
0.600 mm
r1
0.600 mm
