NTN ARA82109T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
4300 RPM
Limiting Speed - Grease
1100 RPM
Precision
ISO Class 0
Weight
0.346 kg
Dynamic Load Rating
45500 N
Static Load Rating
135000 N
Operating Temperature Range
-40 to 120 ºC

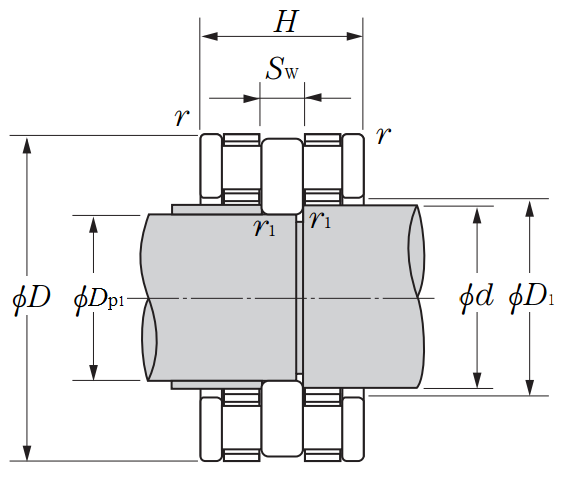

Dimensional Specifications
d
45.000 mm
Dp1 (-0.1/-0.2)
35.000 mm
D1 (0.5/0.2)
47.000 mm
D
65.000 mm
Sw
9.000 mm
H
29.000 mm
r
0.600 mm
r1
0.600 mm
