NTN ARA82116T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
2600 RPM
Limiting Speed - Grease
650 RPM
Precision
ISO Class 0
Weight
1.060 kg
Dynamic Load Rating
79500 N
Static Load Rating
279000 N
Operating Temperature Range
-40 to 120 ºC

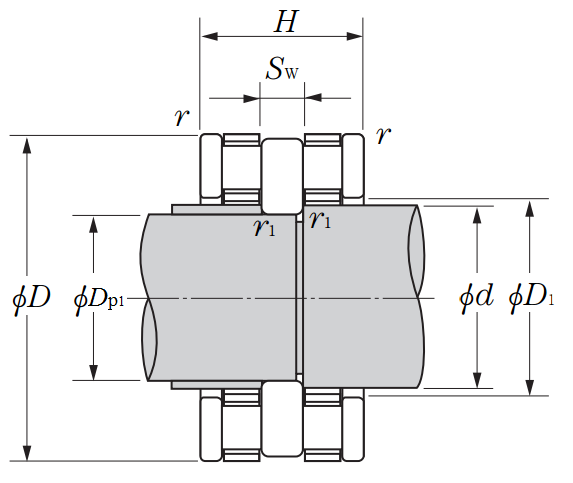

Dimensional Specifications
d
80.000 mm
Dp1 (-0.1/-0.2)
65.000 mm
D1 (0.5/0.2)
82.000 mm
D
105.000 mm
Sw
12.500 mm
H
39.000 mm
r
1.000 mm
r1
1.000 mm
