NTN ARA82120T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
500 RPM
Precision
ISO Class 0
Weight
2.480 kg
Dynamic Load Rating
158000 N
Static Load Rating
555000 N
Operating Temperature Range
-40 to 120 ºC

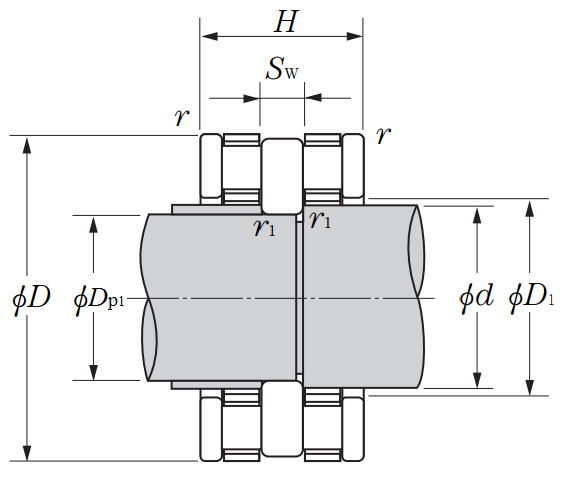

Dimensional Specifications
d
100.000 mm
Dp1 (-0.1/-0.2)
85.000 mm
D1 (0.5/0.2)
102.000 mm
D
135.000 mm
Sw
18.000 mm
H
54.000 mm
r
1.000 mm
r1
1.000 mm
