NTN ARA82126
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
1600 RPM
Limiting Speed - Grease
400 RPM
Precision
ISO Class 0
Weight
4.370 kg
Dynamic Load Rating
197000 N
Static Load Rating
755000 N
Operating Temperature Range
-40 to 120 ºC

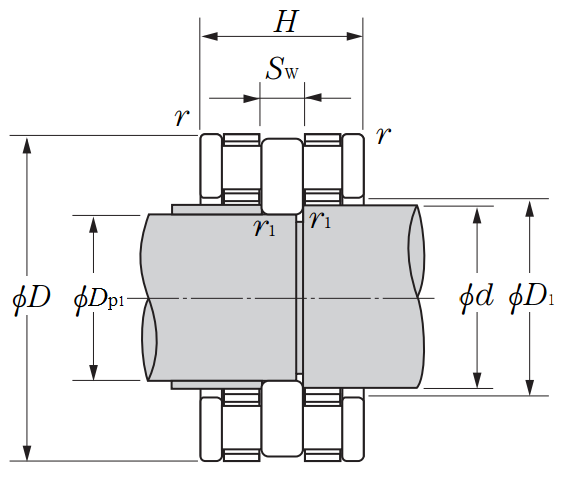

Dimensional Specifications
d
130.000 mm
Dp1 (-0.1/-0.2)
110.000 mm
D1 (0.5/0.2)
132.000 mm
D
170.000 mm
Sw
22.000 mm
H
64.000 mm
r
1.000 mm
r1
1.000 mm
