NTN ARB82107T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
1400 RPM
Precision
ISO Class 0
Weight
0.270 kg
Dynamic Load Rating
31000 N
Static Load Rating
87000 N
Operating Temperature Range
-40 to 120 ºC

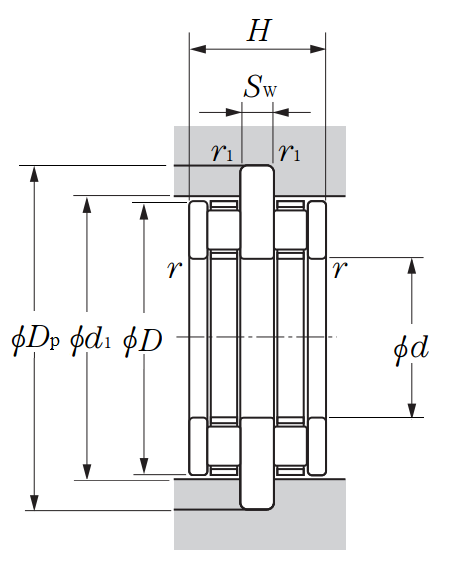

Dimensional Specifications
d
35.000 mm
D
52.000 mm
Dp (0.5/0.3)
64.000 mm
Sw
9.000 mm
H
26.000 mm
r
0.600 mm
r1
0.600 mm
d1
53.000 mm
