NTN ARB82110T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
3900 RPM
Limiting Speed - Grease
1000 RPM
Precision
ISO Class 0
Weight
0.526 kg
Dynamic Load Rating
48500 N
Static Load Rating
150000 N
Operating Temperature Range
-40 to 120 ºC

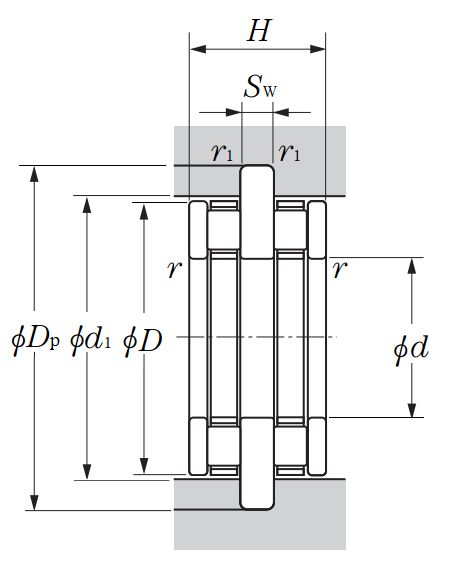

Dimensional Specifications
d
50.000 mm
D
70.000 mm
Dp (0.5/0.3)
84.000 mm
Sw
11.500 mm
H
31.500 mm
r
0.600 mm
r1
0.600 mm
d1
71.000 mm
