NTN ARB82112T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
3200 RPM
Limiting Speed - Grease
800 RPM
Precision
ISO Class 0
Weight
0.838 kg
Dynamic Load Rating
69000 N
Static Load Rating
215000 N
Operating Temperature Range
-40 to 120 ºC

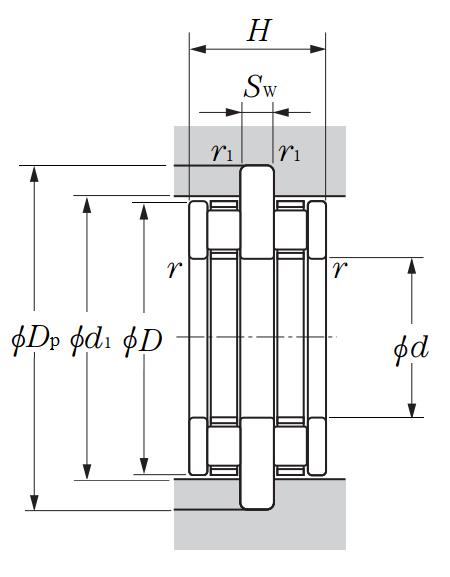

Dimensional Specifications
d
60.000 mm
D
85.000 mm
Dp (0.5/0.3)
99.000 mm
Sw
12.500 mm
H
37.000 mm
r
1.000 mm
r1
1.000 mm
d1
86.000 mm
