NTN ARB82113T2
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
3000 RPM
Limiting Speed - Grease
750 RPM
Precision
ISO Class 0
Weight
0.930 kg
Dynamic Load Rating
73000 N
Static Load Rating
236000 N
Operating Temperature Range
-40 to 120 ºC

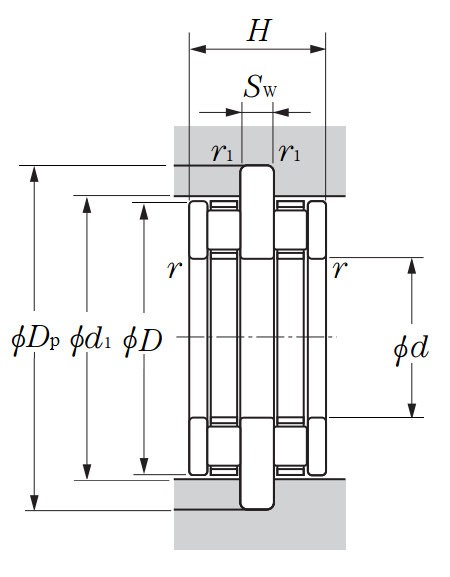

Dimensional Specifications
d
65.000 mm
D
90.000 mm
Dp (0.5/0.3)
104.000 mm
Sw
12.500 mm
H
38.000 mm
r
1.000 mm
r1
1.000 mm
d1
91.000 mm
