NTN ARB8211512
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
700 RPM
Precision
ISO Class 0
Weight
1.370 kg
Dynamic Load Rating
78000 N
Static Load Rating
268000 N
Operating Temperature Range
-40 to 120 ºC

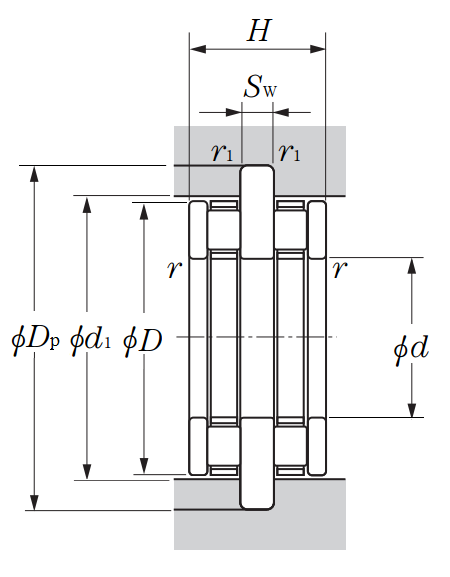

Dimensional Specifications
d
75.000 mm
D
100.000 mm
Dp (0.5/0.3)
119.000 mm
Sw
16.000 mm
H
42.500 mm
r
1.000 mm
r1
1.000 mm
d1
101.000 mm
