NTN ARN2052T2
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
1800 RPM
Limiting Speed - Grease
7000 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
0.440 kg
Axial Static Load Rating
68000 N
Axial Dynamic Load Rating
27300 N
Radial Static Load Rating
22400 N
Radial Dynamic Load Rating
15100 N
Operating Temperature Range
-40 to 120 ºC

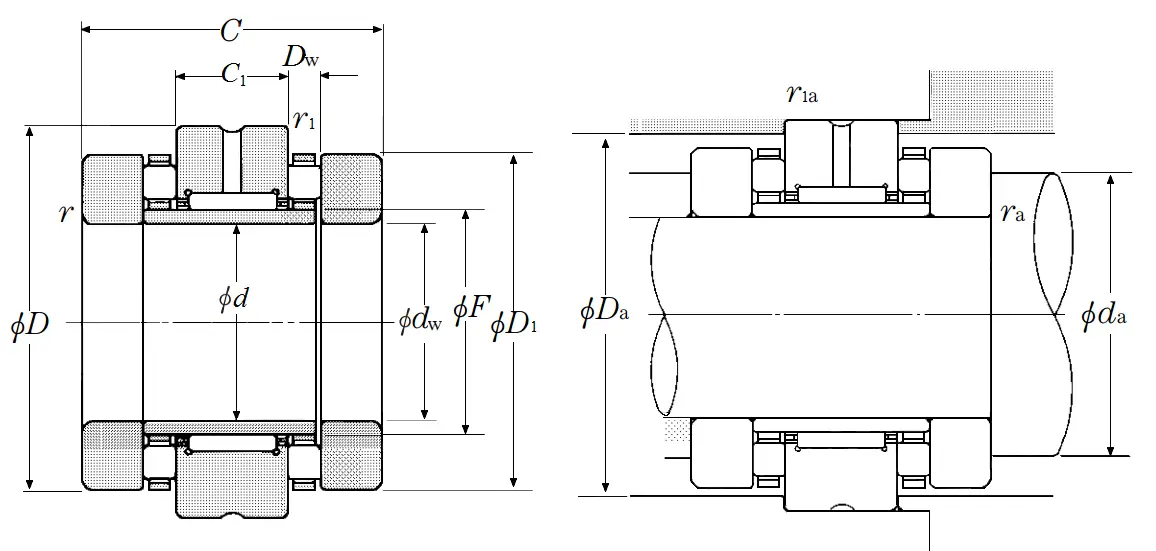

Dimensional Specifications
d
20.000 mm
dw
20.000 mm
D
42.000 mm
D1
42.000 mm
F
25.000 mm
C (0/-0.250)
46.000 mm
C1 (0/-0.20)
16.000 mm
Dw
5.000 mm
r
0.600 mm
r1
0.600 mm
da min
39.000 mm
Da max
46.000 mm
ras max
0.600 mm
r1as max
0.600 mm
