NTN ARN45105
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
850 RPM
Limiting Speed - Grease
3300 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
3.160 kg
Axial Static Load Rating
340000 N
Axial Dynamic Load Rating
121000 N
Radial Static Load Rating
82000 N
Radial Dynamic Load Rating
41000 N
Operating Temperature Range
-40 to 120 ºC

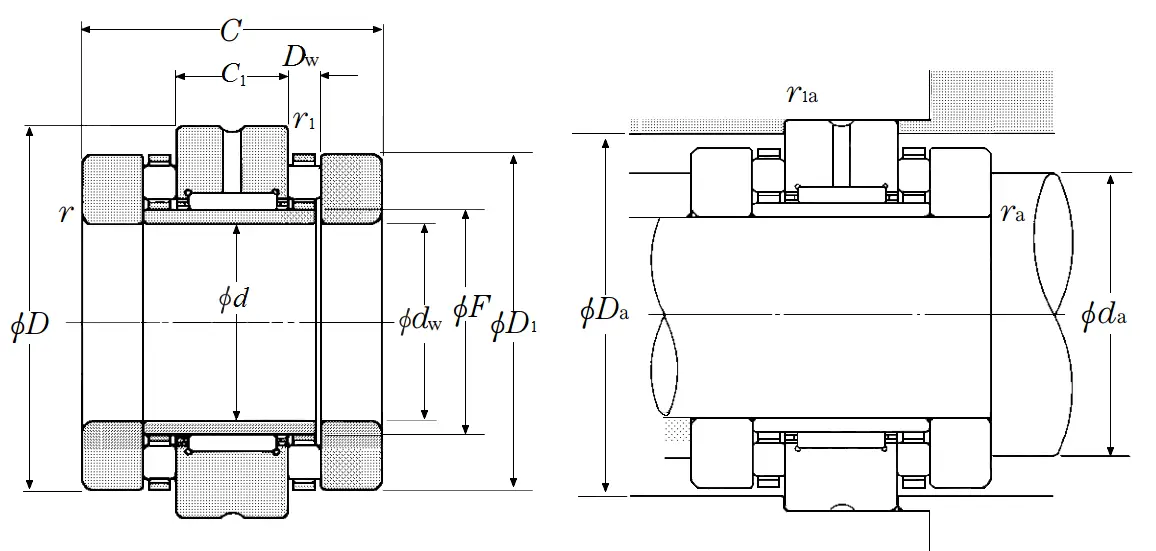

Dimensional Specifications
d
45.000 mm
dw
45.000 mm
D
105.000 mm
D1
90.000 mm
F
55.000 mm
C (0/-0.250)
82.000 mm
C1 (0/-0.20)
25.000 mm
Dw
11.000 mm
r
1.000 mm
r1
0.600 mm
da min
83.000 mm
Da max
96.000 mm
ras max
1.000 mm
r1as max
0.600 mm
