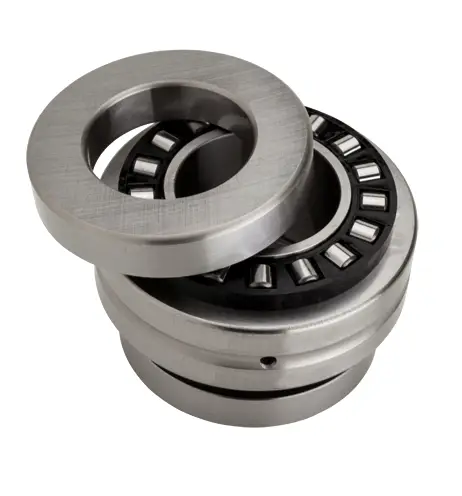

NTN ARN4580T2
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
1000 RPM
Limiting Speed - Grease
4000 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
1.160 kg
Axial Static Load Rating
150000 N
Axial Dynamic Load Rating
40000 N
Radial Static Load Rating
74500 N
Radial Dynamic Load Rating
38500 N
Operating Temperature Range
-40 to 120 ºC

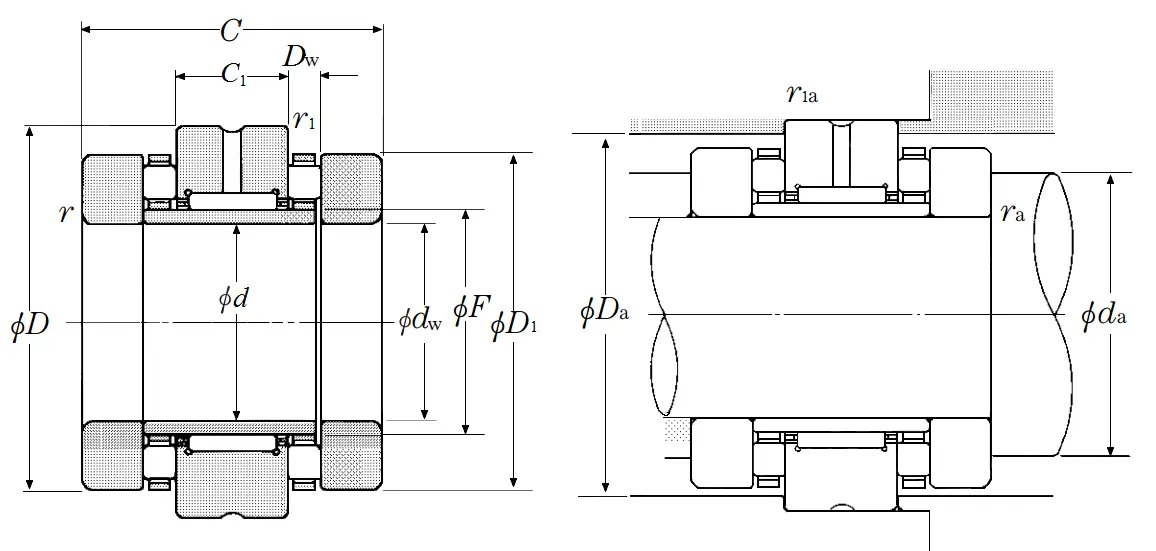

Dimensional Specifications
d
45.000 mm
dw
45.000 mm
D
80.000 mm
D1
70.000 mm
F
50.000 mm
C (0/-0.250)
60.000 mm
C1 (0/-0.20)
25.000 mm
Dw
6.000 mm
r
1.000 mm
r1
0.600 mm
da min
66.000 mm
Da max
74.000 mm
ras max
1.000 mm
r1as max
0.600 mm
