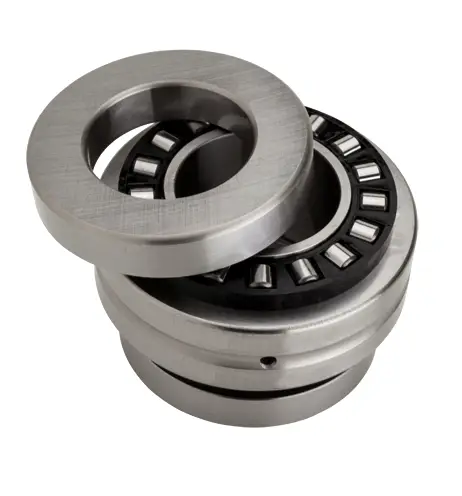

NTN ARN50110
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
800 RPM
Limiting Speed - Grease
3100 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
3.380 kg
Axial Static Load Rating
365000 N
Axial Dynamic Load Rating
125000 N
Radial Static Load Rating
85000 N
Radial Dynamic Load Rating
41000 N
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
50.000 mm
dw
50.000 mm
D
110.000 mm
D1
95.000 mm
F
60.000 mm
C (0/-0.250)
82.000 mm
C1 (0/-0.20)
25.000 mm
Dw
11.000 mm
r
1.100 mm
r1
0.600 mm
da min
88.000 mm
Da max
101.000 mm
ras max
1.000 mm
r1as max
0.600 mm
