NTN AXA2115
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
2700 RPM
Limiting Speed - Grease
700 RPM
Precision
ISO Class 0
Weight
0.902 kg
Dynamic Load Rating
55000 N
Static Load Rating
266000 N
Operating Temperature Range
-40 to 120 ºC

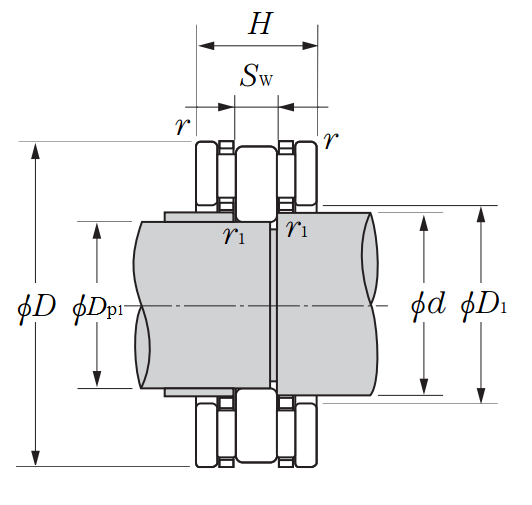

Dimensional Specifications
d
75.000 mm
Dp1 (-0.1/-0.2)
60.000 mm
D1 (0.5/0.2)
77.000 mm
D
100.000 mm
Sw
12.500 mm
H
32.000 mm
r
1.000 mm
r1
1.000 mm
