NTN AXB2102
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
2800 RPM
Precision
ISO Class 0
Weight
0.057 kg
Dynamic Load Rating
11300 N
Static Load Rating
36000 N
Operating Temperature Range
-40 to 120 ºC

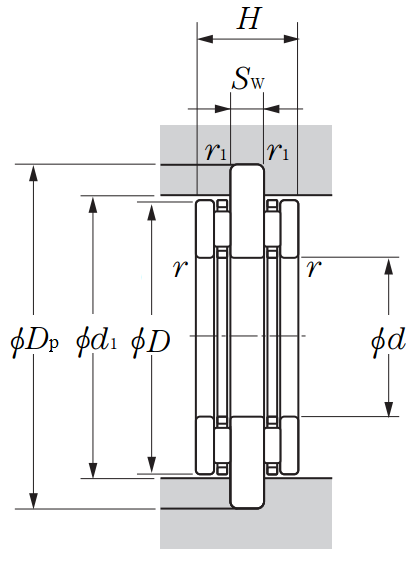

Dimensional Specifications
d
15.000 mm
D
28.000 mm
Dp (0.5/0.3)
34.000 mm
Sw
5.500 mm
H
15.000 mm
r
0.300 mm
r1
0.300 mm
d1
28.500 mm
