NTN AXB2104
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
8500 RPM
Limiting Speed - Grease
2100 RPM
Precision
ISO Class 0
Weight
0.084 kg
Dynamic Load Rating
13200 N
Static Load Rating
46500 N
Operating Temperature Range
-40 to 120 ºC

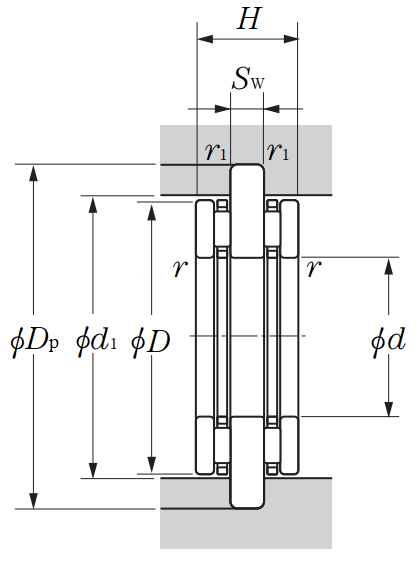

Dimensional Specifications
d
20.000 mm
D
35.000 mm
Dp (0.5/0.3)
41.000 mm
Sw
6.000 mm
H
15.500 mm
r
0.300 mm
r1
0.300 mm
d1
35.500 mm
