NTN AXB2111
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
3500 RPM
Limiting Speed - Grease
900 RPM
Precision
ISO Class 0
Weight
0.610 kg
Dynamic Load Rating
38000 N
Static Load Rating
186000 N
Operating Temperature Range
-40 to 120 ºC

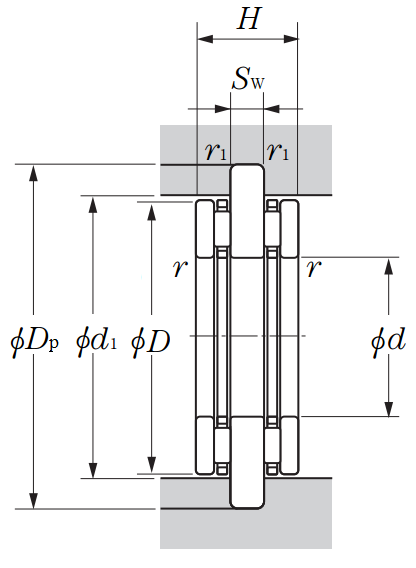

Dimensional Specifications
d
55.000 mm
D
78.000 mm
Dp (0.5/0.3)
89.000 mm
Sw
12.000 mm
H
28.000 mm
r
0.600 mm
r1
0.600 mm
d1
79.000 mm
