NTN AXB2120
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
500 RPM
Precision
ISO Class 0
Weight
2.760 kg
Dynamic Load Rating
90000 N
Static Load Rating
550000 N
Operating Temperature Range
-40 to 120 ºC

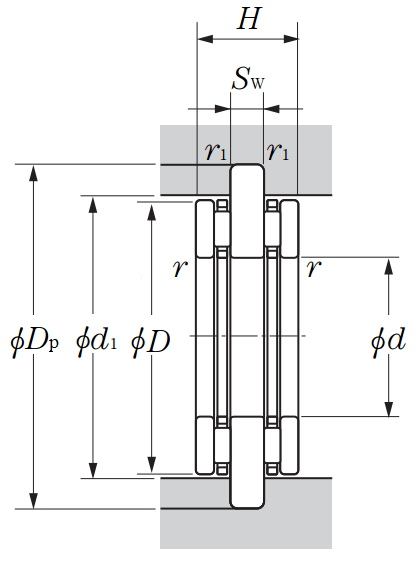

Dimensional Specifications
d
100.000 mm
D
135.000 mm
Dp (0.5/0.3)
154.000 mm
Sw
22.000 mm
H
44.000 mm
r
1.000 mm
r1
1.000 mm
d1
136.000 mm
