NTN AXB2124
Double Row Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Bearing
Bore Type
Round
Configuration
Two
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
430 RPM
Precision
ISO Class 0
Weight
3.550 kg
Dynamic Load Rating
99000 N
Static Load Rating
650000 N
Operating Temperature Range
-40 to 120 ºC

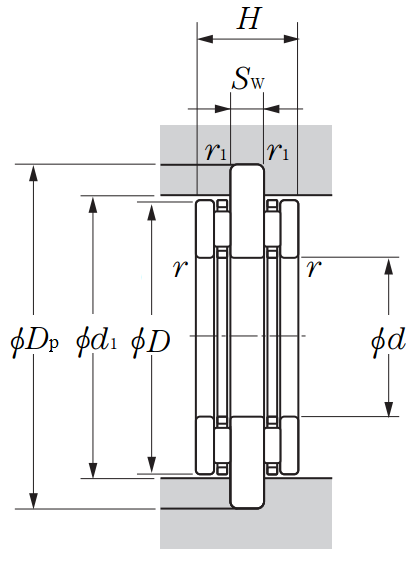

Dimensional Specifications
d
120.000 mm
D
155.000 mm
Dp (0.5/0.3)
179.000 mm
Sw
23.000 mm
H
45.000 mm
r
1.000 mm
r1
1.000 mm
d1
156.000 mm
