NTN AXK1100
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
3500 RPM
Precision
ISO Class 0
Dynamic Load Rating
9150 N
Static Load Rating
25300 N
Operating Temperature Range
-40 to 120 ºC

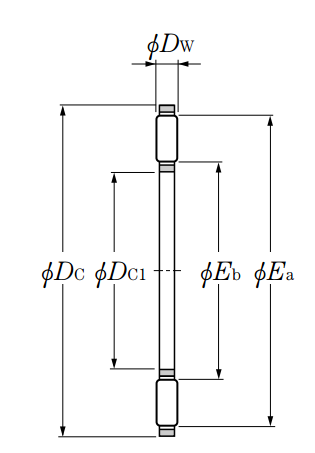

Dimensional Specifications
Dc1
10.000 mm
Dc
24.000 mm
Dw (0/-0.010)
2.000 mm
Ea
21.700 mm
Eb
12.300 mm
