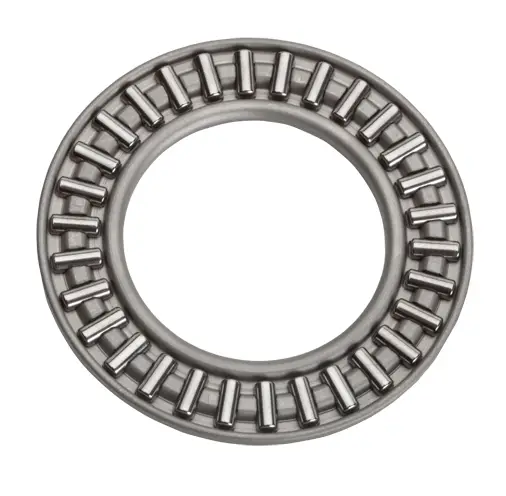

NTN AXK1101
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
3300 RPM
Precision
ISO Class 0
Dynamic Load Rating
9850 N
Static Load Rating
28900 N
Operating Temperature Range
-40 to 120 ºC

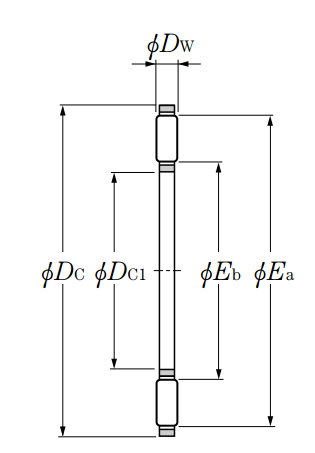

Dimensional Specifications
Dc1
12.000 mm
Dc
26.000 mm
Dw (0/-0.010)
2.000 mm
Ea
23.700 mm
Eb
14.300 mm
