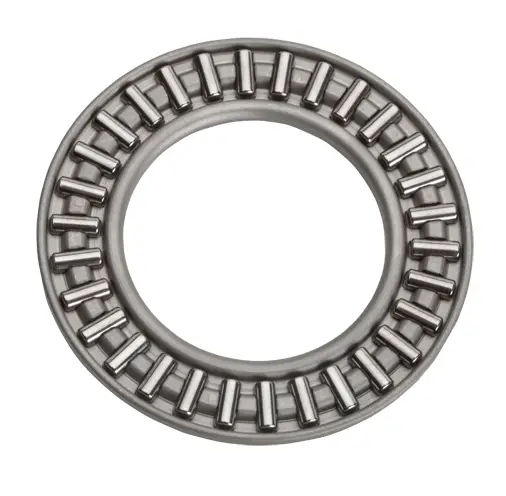

NTN AXK1102
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
2800 RPM
Precision
ISO Class 0
Dynamic Load Rating
11300 N
Static Load Rating
36000 N
Operating Temperature Range
-40 to 120 ºC

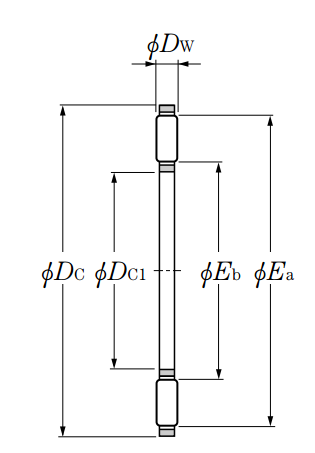

Dimensional Specifications
Dc1
15.000 mm
Dc
28.000 mm
Dw (0/-0.010)
2.000 mm
Ea
26.500 mm
Eb
17.200 mm
