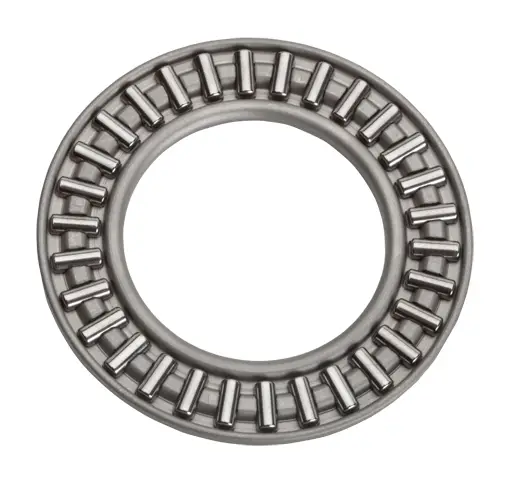

NTN AXK1108
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
4700 RPM
Limiting Speed - Grease
1200 RPM
Precision
ISO Class 0
Dynamic Load Rating
27400 N
Static Load Rating
110000 N
Operating Temperature Range
-40 to 120 ºC

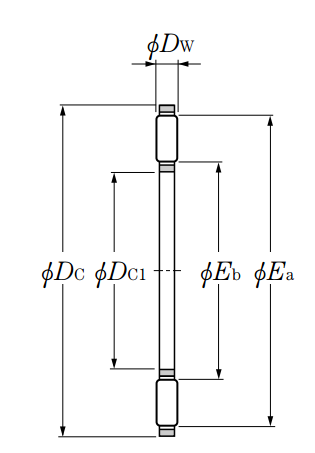

Dimensional Specifications
Dc1
40.000 mm
Dc
60.000 mm
Dw (0/-0.010)
3.000 mm
Ea
56.200 mm
Eb
44.200 mm
