NTN AXK1110

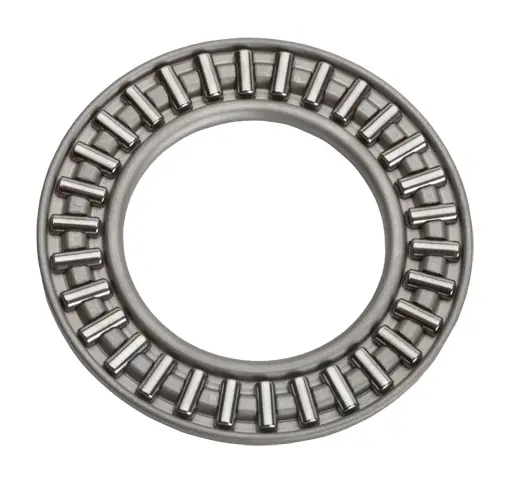

Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
3900 RPM
Limiting Speed - Grease
1000 RPM
Precision
ISO Class 0
Dynamic Load Rating
31500 N
Static Load Rating
143000 N
Operating Temperature Range
-40 to 120 ºC

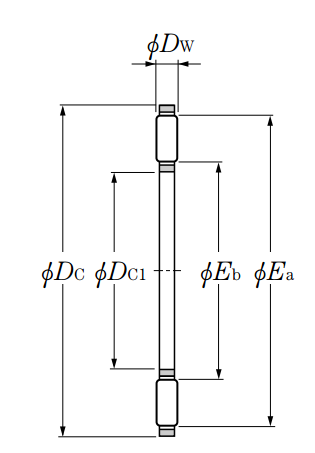

Dimensional Specifications
Dc1
50.000 mm
Dc
70.000 mm
Dw (0/-0.010)
3.000 mm
Ea
67.400 mm
Eb
55.500 mm
