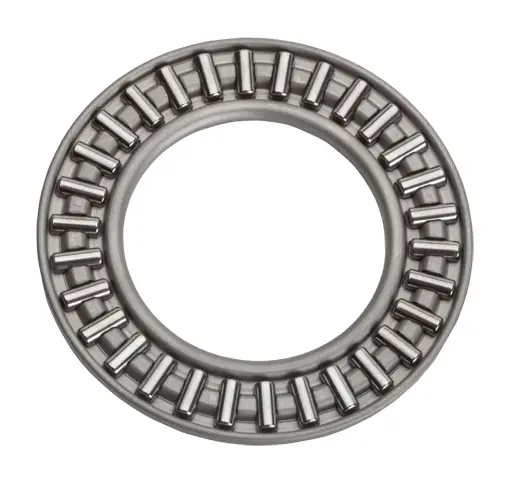

NTN AXK1113
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
3000 RPM
Limiting Speed - Grease
750 RPM
Precision
ISO Class 0
Dynamic Load Rating
46500 N
Static Load Rating
254000 N
Operating Temperature Range
-40 to 120 ºC

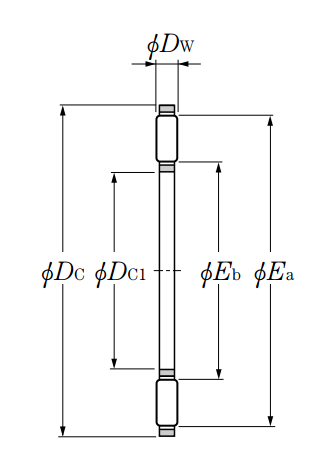

Dimensional Specifications
Dc1
65.000 mm
Dc
90.000 mm
Dw (0/-0.010)
3.000 mm
Ea
86.900 mm
Eb
71.000 mm
