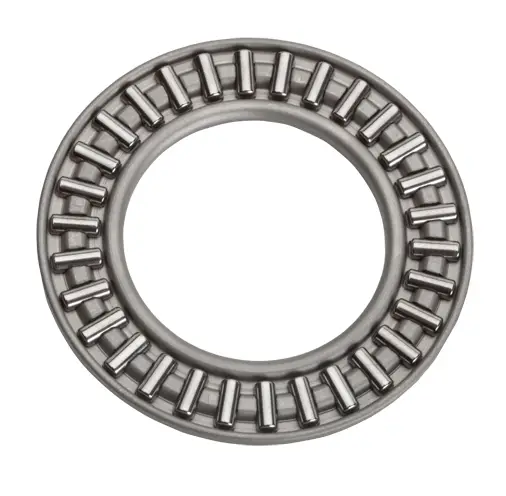

NTN AXK1124
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
430 RPM
Precision
ISO Class 0
Dynamic Load Rating
99000 N
Static Load Rating
650000 N
Operating Temperature Range
-40 to 120 ºC

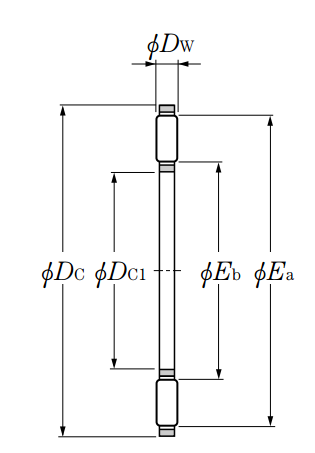

Dimensional Specifications
Dc1
120.000 mm
Dc
155.000 mm
Dw (0/-0.010)
4.000 mm
Ea
149.400 mm
Eb
125.500 mm
