NTN AXK1128
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
High Strength Brass
Limiting Speed - Oil
1500 RPM
Limiting Speed - Grease
380 RPM
Precision
ISO Class 0
Dynamic Load Rating
145000 N
Static Load Rating
960000 N
Operating Temperature Range
-40 to 120 ºC

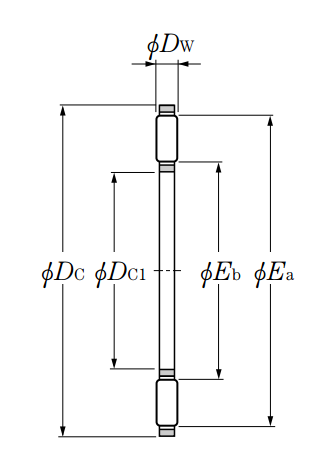

Dimensional Specifications
Dc1
140.000 mm
Dc
180.000 mm
Dw (0/-0.010)
5.000 mm
Ea
174.000 mm
Eb
146.000 mm
