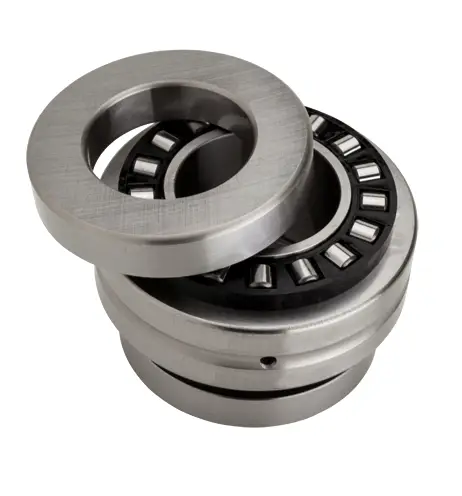

NTN AXN3062P4
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
5500 RPM
Precision
ISO Class 4
Enclosure
Open
Axial Static Load Rating
81500 N
Axial Dynamic Load Rating
17800 N
Radial Static Load Rating
41500 N
Radial Dynamic Load Rating
24800 N
Operating Temperature Range
-40 to 120 ºC

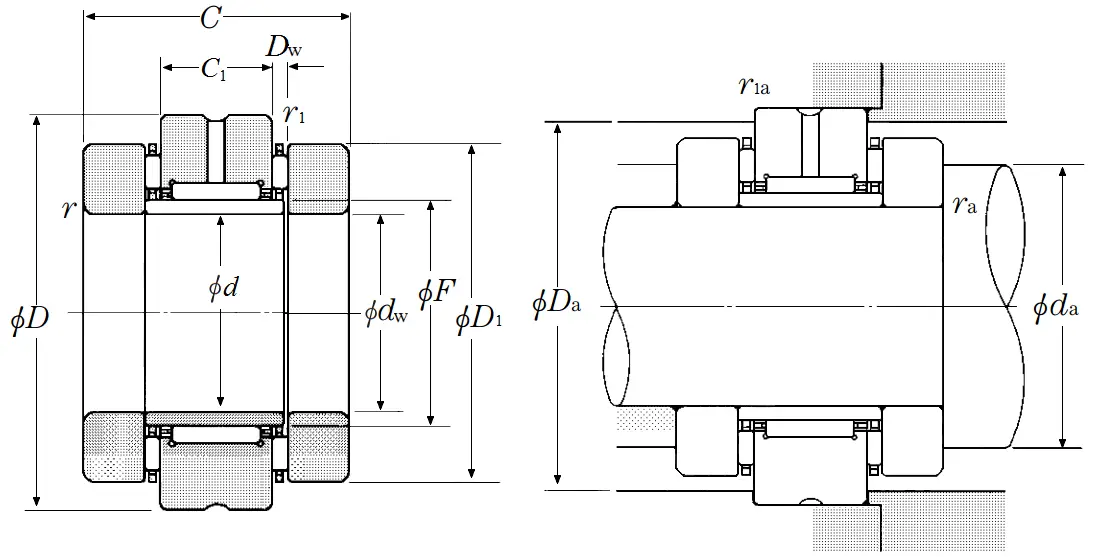

Dimensional Specifications
d
30.000 mm
dw
30.000 mm
D
62.000 mm
D1
52.000 mm
F
35.000 mm
C (0/-0.250)
44.000 mm
C1 (0/-0.20)
20.000 mm
Dw
2.000 mm
r
0.600 mm
r1
0.600 mm
da min
50.000 mm
Da max
56.000 mm
ras max
0.600 mm
r1as max
0.600 mm
