NTN BK2018L
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Grease
8000 RPM
Seal Material
Nitrile Rubber
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Closed End and Single Sealed
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
20100 N
Dynamic Load Rating
13000 N
Weight
0.024 kg
Operating Temperature Range
-40 to 120 ºC

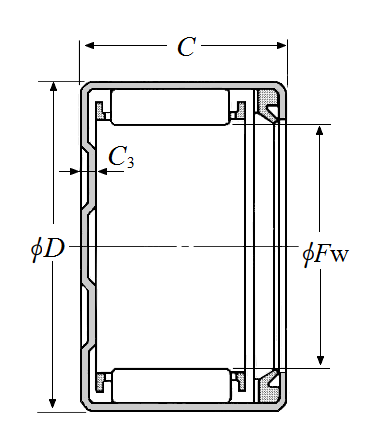

Dimensional Specifications
Fw
20.000 mm
D
26.000 mm
C
18.000 mm
C3
2.700 mm
