NTN BNT005DTP2
Double Angular Contact Ball Bearings for Motors and Lathes
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic Resin
Ball Material
Steel
Limiting Speed - Oil
27000 RPM
Limiting Speed - Grease
20000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 2
Configuration
Two
Factor
6.7
Static Load Rating
9700 N
Dynamic Load Rating
14500 N
Enclosure
Open
Weight
0.150 kg
Operating Temperature Range
-40 to 120 ºC

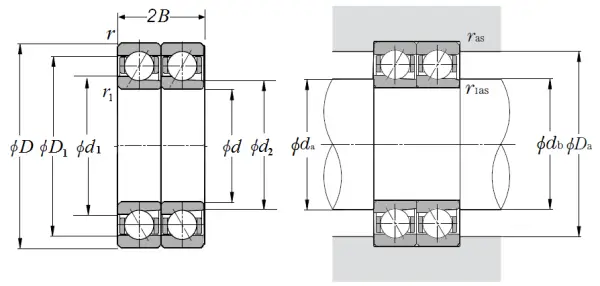

Dimensional Specifications
d
25.000 mm
D
47.000 mm
B
12.000 mm
2B
24.000 mm
d1
31.800 mm
d2
29.400 mm
D1
40.600 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
da min
29.500 mm
db min
27.500 mm
Da max
42.500 mm
ras max
0.600 mm
r1as max
0.300 mm
