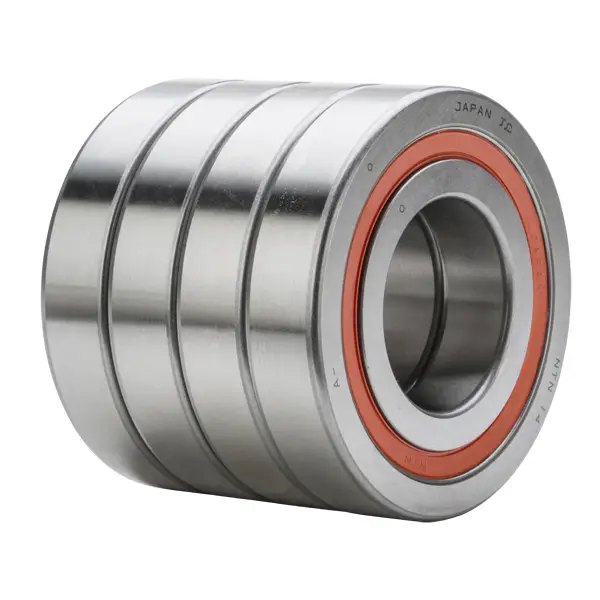

NTN BST17X47-1BLXLDTTT
Quadruple-Row Angular Contact Thrust Ball Bearings for Ball Screws
(BRAND)：NTN
(Availability)：In Stock
Detailed data of
BST17X47-1BLXLDTTT
Technical Specifications
Type
Ball Screw Support Bearing
Material
High Carbon Chrome Steel
Cage Type
Molded
Cage Material
Resin
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Configuration
Four
Static Load Rating
150000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
17.000 mm
D
47.000 mm
B
15.000 mm
4B
60.000 mm
d1
29.900 mm
d2
25.700 mm
D1
37.100 mm
D2
41.200 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
60 º
