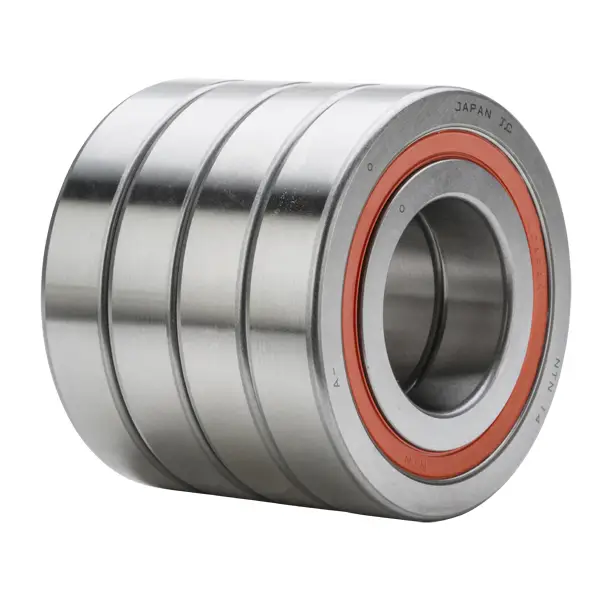

NTN BST20X47-1BLXLDTBT
Quadruple-Row Angular Contact Thrust Ball Bearings for Ball Screws
(BRAND)：NTN
(Availability)：In Stock
Detailed data of
BST20X47-1BLXLDTBT
Technical Specifications
Type
Ball Screw Support Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Resin
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Configuration
Four
Static Load Rating
75000 N
Dynamic Load Rating
39500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
15.000 mm
4B
60.000 mm
d1
29.900 mm
d2
25.700 mm
D1
37.100 mm
D2
41.200 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
60 º
