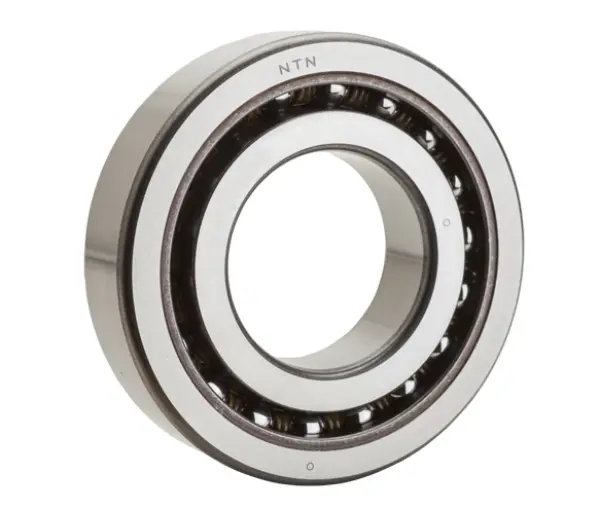

NTN BST25X62-1BP4
Single Angular Contact Thrust Ball Bearings for Ball Screws
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Thrust Ball Bearing for Ball Screws
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Space Capacity (Single Row)
4.600 cm³
Seal Type
None
Seal Material
None
Precision
ISO Class 4
Configuration
One
Preload
Heavy
Static Load Rating
59000 N
Dynamic Load Rating
29200 N
Enclosure
Open
Weight
0.235 kg
Operating Temperature Range
-40 to 120 ºC

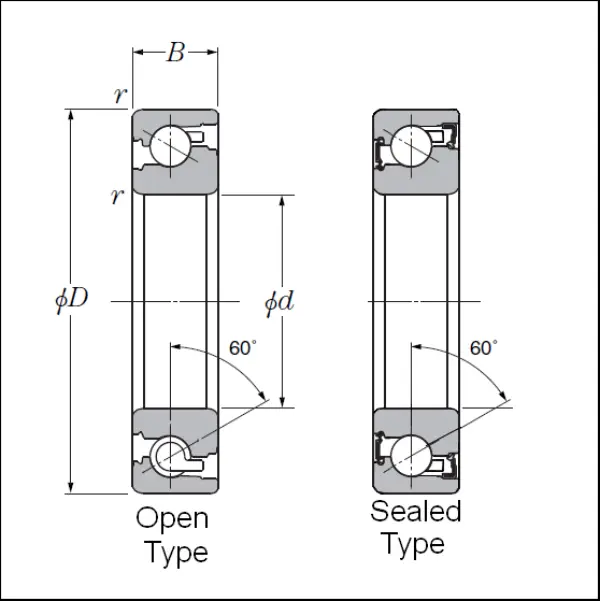

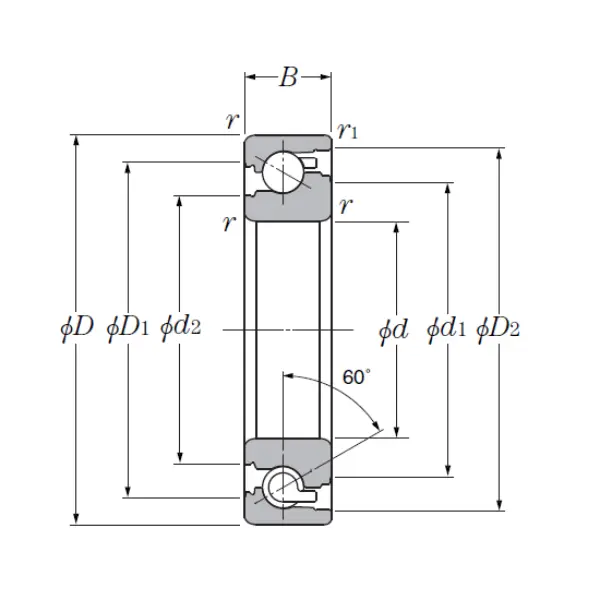

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
15.000 mm
d1
44.400 mm
d2
40.200 mm
D1
51.600 mm
D2
55.700 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
60 º
